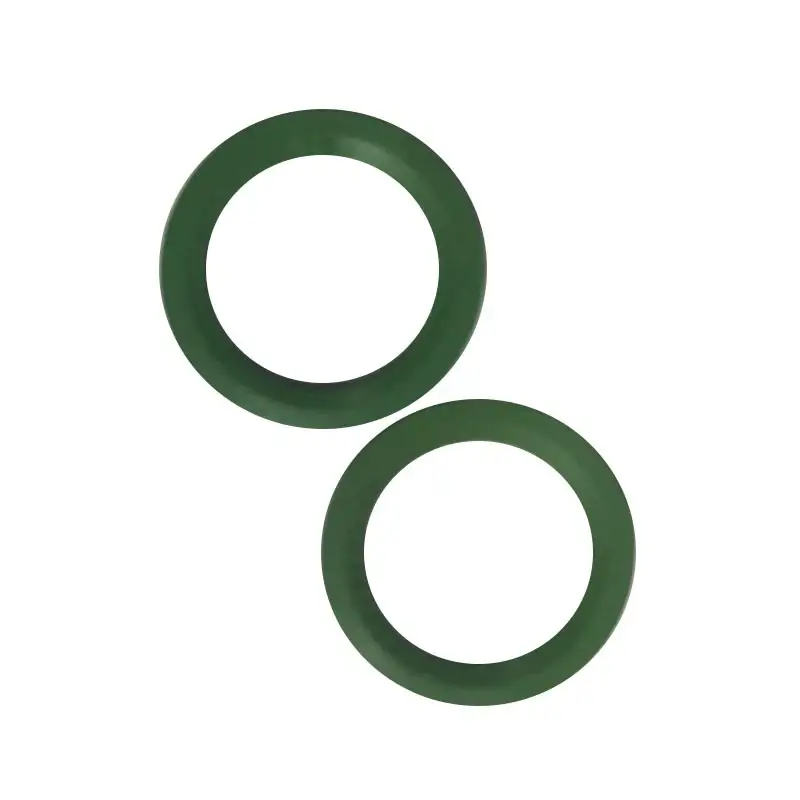

ED Ring

ED-Ring Technical requirements

Main material: NBR (BUNA-N, Nitrile) , VITON(FKM) , Silicone(VMQ) ,HNBR, FFKM ,EPDM , PU(Polyurethane , urethane),Fluorine silica gel(FVMQ),Neoprene(CR) and so on.

ADVANTAGES

The company introduced the international quality system- ISO 9001-2000 to guide the production and operation.

ED-Rings ADVANTAGES 01

ED-Rings offer an efficient and economical sealing element for a wide range of static or dynamic applications.

ED-Rings ADVANTAGES 02

Standard sizes are all available.

ED-RingsADVANTAGES 03

We have all the ED-ring mould , so you could get any size here without set-up or tooling charge . Huge inventory of ED-rings can meet your urgent requirements.

ED-Rings ADVANTAGES 04

A very wide range of rubber material can be selected , main material: NBR (BUNA-N, Nitrile) , VITON(FKM) , Silicone(VMQ) ,HNBR, FFKM ,EPDM , PU(Polyurethane , urethane),Fluorine silica gel(FVMQ),Neoprene(CR) and so on. Hardness of material can be from 40 Shore-A (hardness) to 90 Shore-A (hardness).

PARAMETER

There are two modern production workshops and a series of advanced production and testing equipment.

ED-Ring

Material: NBR,FKM,EPDM...

Color: Customized according to Pantone colors

Hardness: 50-90 shore A
Size: Customized
Manufacture method: Mould pressing

Temperature: 50-90 shore A
Certificate: SGS, Rosh
Package:-40~+120°C or -20~+200°C

ED-Ring

Lead time:
1) 1-2 days if goods in stock

2) 10-15days if goods out of stock with molding

3) 15-20 days if goods out of stock without molding

4) Store, Prompt shipment if annual requirement informed

Port of Loading:Shanghai
Delivery Ways:By air/sea/train/express
Drawings:2D or 3D

DETAILS

Our products are sold not only the domestic many areas,but also exported to United states,Brazil,Italy,Sweden,Germany and other countries.

ED-Ring size
Model		ID	OD	h1+0.1	h2
M8*1		6.5	9.9	1	0.5
M10*1	G1/8A	8.4	11.9	1	0.5
M12*1.5		9.8	14.4	1.5	0.8
M14*1.5	G1/4A	11.5	16.5	1.5	0.8
M16*1.5		13.8	18.9	1.5	0.8
	G3/8A	14.7	18.9	1.5	0.8
M18*1.5		15.7	20.9	1.5	0.8
M20*1.5		17.8	22.9	1.5	0.8
	G1/2A	18.5	23.9	1.5	0.8
M22*1.5		19.6	24.3	1.5	0.8
M24*1.5	G5/8A	21.8	26.9	1.5	0.8
M27*2	G3/4A	23.9	29.2	1.5	0.8
M33*2		29.7	35.7	2	1
M42*2	G11/A2	38.8	45.8	2	1
M48*2	G11/A2	44.7	50.7	2	1
M60*2	G2A	56.5	66.5	4	2

Suzhou Ultimate Sealing Technology Co.,Ltd is a collection R&D,production,sales in one of the enterprises.
