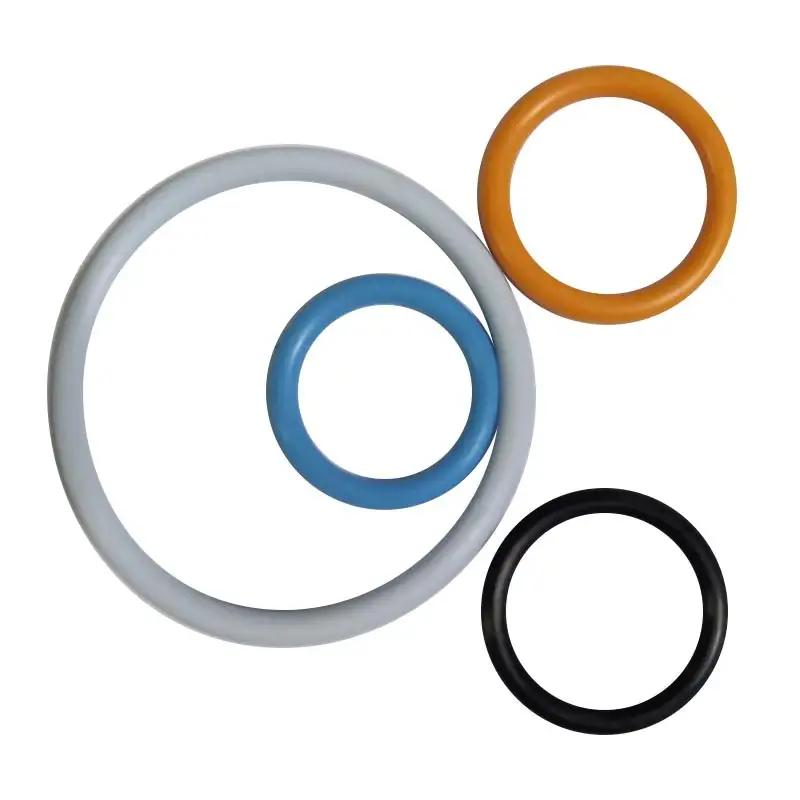

NSF And Food Grade Epdm O-ring

O-Ring Technical requirements

Appearance meets GB/T3452.2-2007 Material meets HG/T2579-2008 Size meets GB/T3452.1-2005

In addition , all our products are ROHS and REACH Compliant (we mainly export products to USA and Europe market).

ADVANTAGES

The company introduced the international quality system- ISO 9001-2000 to guide the production and operation.

O-Ring ADVANTAGES 01

O-Rings offer an efficient and economical sealing element for a wide range of static or dynamic applications.

O-Ring ADVANTAGES 02

O-Ring sizes are defined by the inner diameter-ID and the cross section-CS , our o-ring Inner Diameter can be from 0.5mm to 1500mm .

O-Ring ADVANTAGES 03

Standard sizes such as AS568(PARKER sizes), JIS(P TYPE,G TYPE,S TYPE ,V TYPE ,F TYPE sizes) , BS1516 sizes Metric sizes as well as non-standard sizes are all available.

O-Ring ADVANTAGES 04

We have more than 5000 o-ring mould , so you could get any size here without set-up or tooling charge . Huge inventory of o-rings can meet your urgent requirements.

O-Ring ADVANTAGES 05

A very wide range of rubber material can be selected , main material: NBR (BUNA-N, Nitrile) , VITON(FKM) , Silicone(VMQ) ,HNBR, FFKM ,EPDM , PU(Polyurethane , urethane),Fluorine silica gel(FVMQ),Neoprene(CR) and so on. Hardness of material can be from 40 Shore-A (hardness) to 90 Shore-A (hardness)

O-Ring Features 06

Good sealing solution , long service life .

Easy installation reduces risk .

Working in various medium based on different elastomer material.

PARAMETER

There are two modern production workshops and a series of advanced production and testing equipment.

NSF and food grade EPDM O-RING

Material: EPDM

Color：Customized according to Pantone colors

Hardness: 40-90 shore A
Size:Customized
Manufacture method: Mould pressing

Temperature: -50~+150°C
Certificate:SGS, Rosh
Package:Plastic bags/Carton boxes

NSF and food grade EPDM O-RING

Lead time:
1) 1-2 days if goods in stock

2) 10-15days if goods out of stock with molding

3) 15-20 days if goods out of stock without molding

4) Store, Prompt shipment if annual requirement informed

Port of Loading:Shanghai
Delivery Ways:By air/sea/train/express
Drawings:2D or 3D

DETAILS

Our products are sold not only the domestic many areas,but also exported to United states,Brazil,Italy,Sweden,Germany and other countries.

GB3452.1-92
ID(Inner diameter)	Tolerance(+/-)	Cross section(c/s)	Tolerance(+/-)
0 - 1.79	0.1	0 - 1.79	0.07
1.8 - 6.29	0.13	1.8 - 2.64	0.08
6.3 - 10.59	0.14	2.65 - 3.54	0.09
10.6 - 18.99	0.17	3.55 - 5.29	0.1
19 - 31.49	0.22	5.30 - 6.99	0.13
31.5 - 41.19	0.3	7.00 - 8.00	0.15
41.2 - 51.49	0.36	8.01 - 10.00	0.2
51.5 - 64.99	0.44	10.01 - 15.00	0.25
65 - 82.49	0.53	15.01 - 25.00	0.35
82.5 - 121.99	0.65	25.01 - 100.00	0.45
122 - 184.99	0.9
185 - 257.99	1.2
258 - 324.99	1.6
325 - 411.99	2.1
412 - 514.99	2.6
515 - 649.99	3.2
650.00 - 670.00	4
670.01 - 999	5
999.01 - 1200	6
1200.01 - 1500	7
1500.01 - 1800	8
1800.01 - 2000	9
